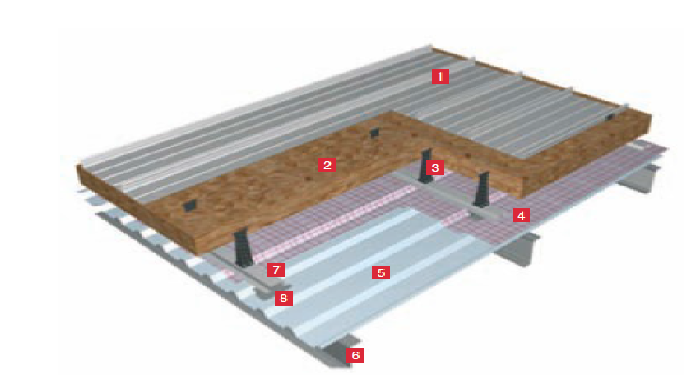

KALZIP STANDING SEAM SYSTEM

  • Kalzip® systems can meet the most demanding construction and design requirements to create roofs and façades that successfully combine outstanding functionality with stunning aesthetics.
  • Available in different shapes and can achieve any shape.
  • Available in different width and any length.
  • Exterior aluminium sheet available from 0.9mm to 1.2mm..
  • Standing seam height will be asper required U value.
  • Solar and nature roofs available.
  • For more details visit www.kalzip.com

Download Specification
about

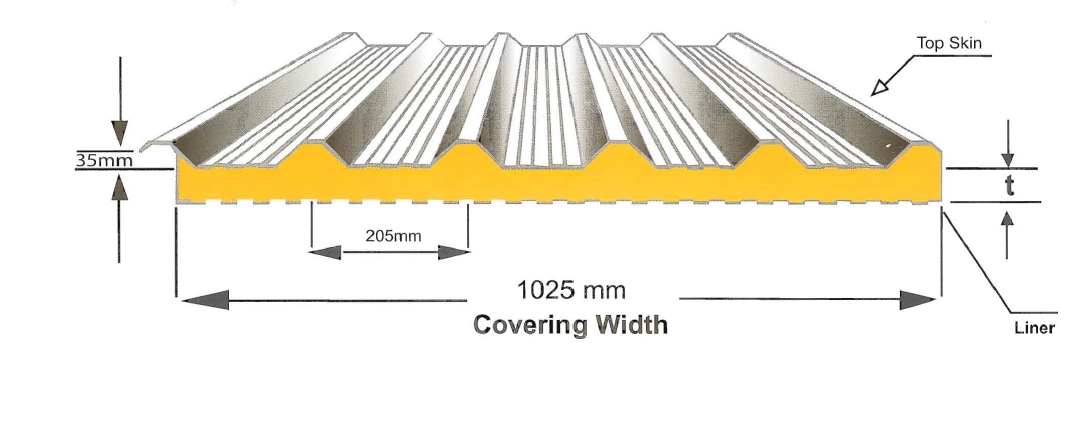

INSULATED COMPOSITE PANELS

about

  • 1025 mm width panel
  • Consists of corrugated surface externally (Top), and slightly ribbed internally ( Bottom), The exterior and interior skins are of a hot dipped galvanized steel confirming to ASTM A653 .
  • coated with 5 I-l epoxy primer coating + 20 I-l of polyester as external coat, the reverse coat is 5 -7 I-l of epoxy primer coat.
  • Both skins will sandwich a 75 mm of POLYURETHANE foam insulation.
  • Available panel thickness 50, 75,100,125&150mm.
  • Metal sheet ASTM 446 GRADE A (Fep02 GZ 275 MB).
  • Metal sheet standard color bone white.
  • Metal sheet thickness 0.50 MM UPTO 0.80 MM.
  • Length from 1000 MM to 14.000 MM.
  • Density 35 to 42 Kg/CM .
  • Thermal conductivity , K value 0.016 W/M.C .

Download Specification

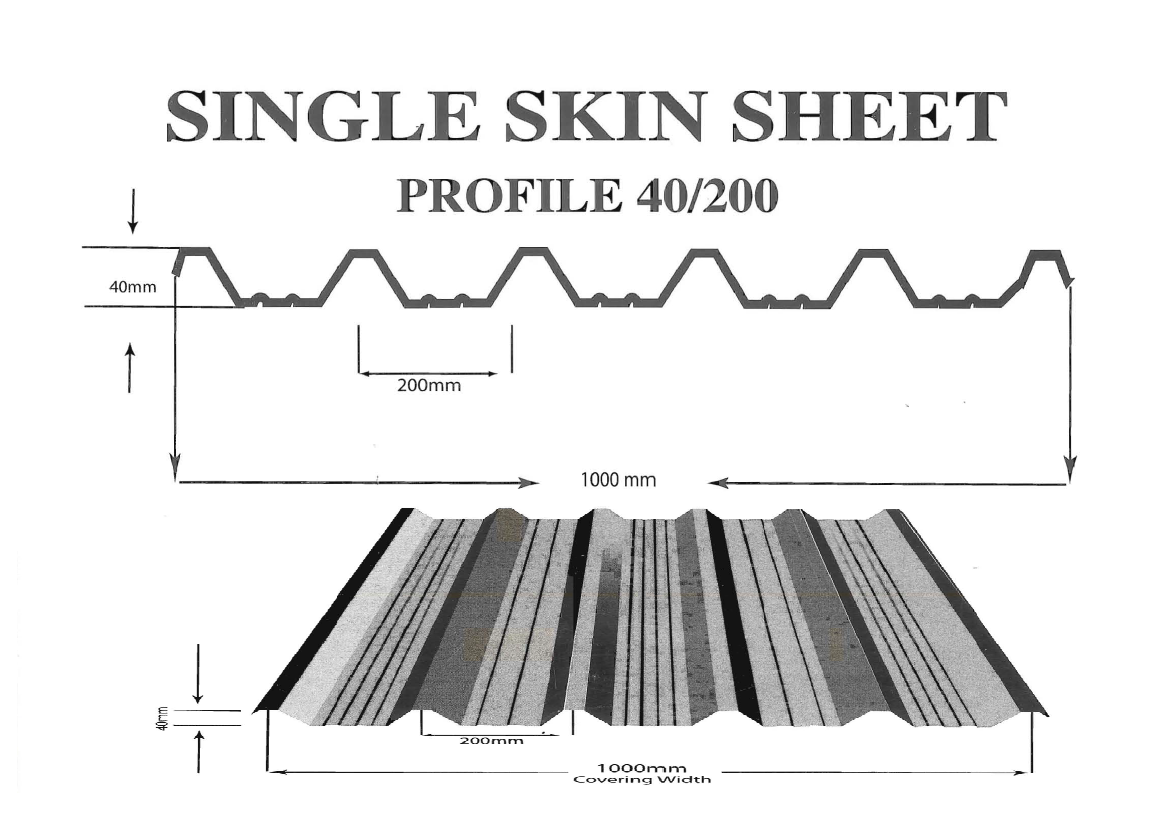

SINGLE SKIN SHEET 40/200

  • Covering width 1000mm .
  • Rib Height 40mm .
  • Available in Aluminium and Steel .
  • Yield Strength 170N/mm2 (Aluminum) .
  • Yield Strength 200 N/mm2 (Steel) .
  • Length of the sheet available as per customer requirement .

Download Specification
about

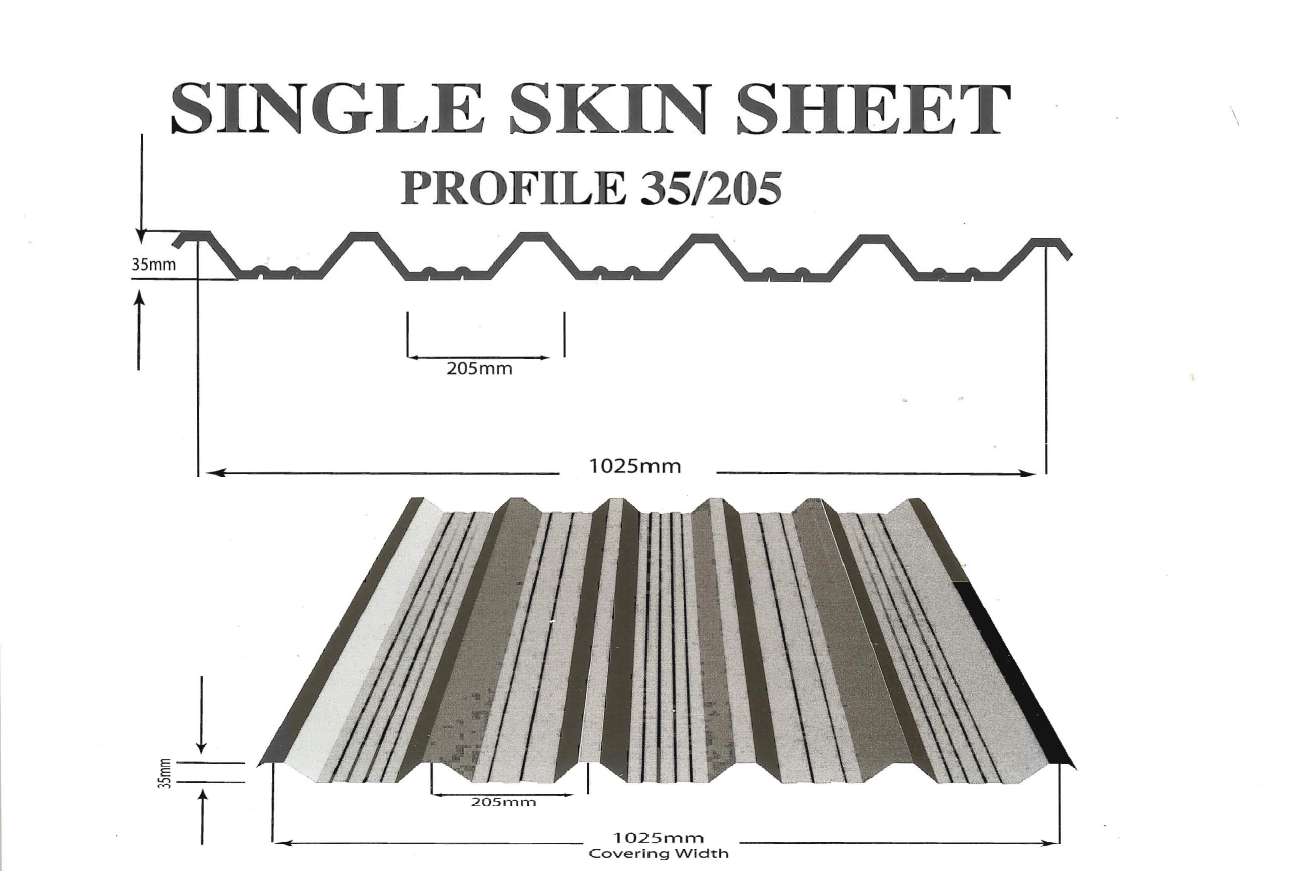

SINGLE SKIN SHEET 35/205

about

  • Covering width 1025mm .
  • Rib Height 35mm .
  • Available in Aluminium and Steel .
  • Yield Strength 170N/mm2 (Aluminum) .
  • Yield Strength 250 N/mm2 (Steel) .
  • Length of the sheet available as per customer requirement .

Download Specification
